Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot

Shenzhen Zhongtu Automation Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot

Certification : CE, ISO, RoHS

MOQ : 1

Price : 3800

Model NO. : ZT-HXJ441-R

Voltage : AC 110~230V

Current : 5A

Power : 680W

Weight : 65Kg

Dimensions : 850*750*850mm

Solder Wire : 0.6~1.5mm solder wire

Temperature Accuracy : ±3°

Solder Feeding Speed : 1~50mm/s

Repeat Accuracy : ±0.02mm

Heating Temperature Range : 0-550ºC

Machine Axis Number : 4axis

X Axis : 400mm

Y Axis : 300mm

Z Axis : 100mm

Contact Now

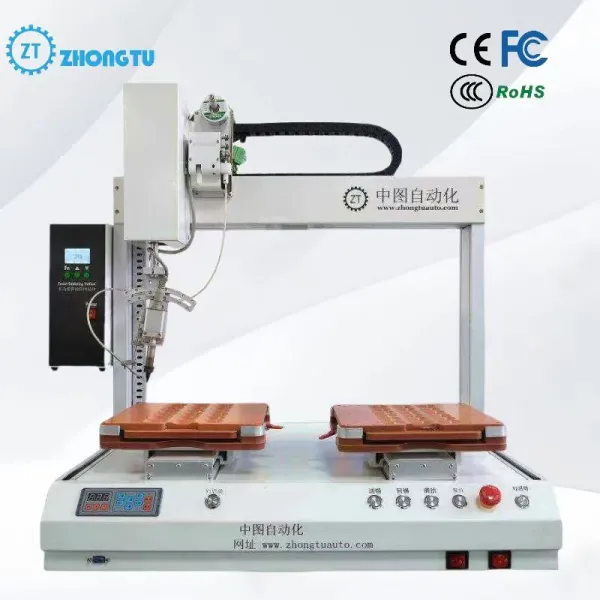

Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot
High efficiency automatic soldering robot with dual soldering heads, designed for manufacturing plants and SMT/DIP applications.
Product Parameters
Name Automatic Soldering Robot Place of Origin ShenZhen, China
Applicable Industries Manufacturing Plant, SMT, DIP Key Selling Points Automatic
Video outgoing-inspection Provided Weight 65Kg
Marketing Type New Product 2024 Voltage 220/110V 50~60Hz
Warranty period 1 Year Dimensions 850*750*850mm
Warranty of core components 3 Years Solder Wire 0.6~1.5mm solder wire
Core Components PLC Temperature Accuracy ±3°
Power 680W Solder Feeding Speed 1~50mm/s
Current 5A Repeat Accuracy ±0.02mm
Technical Specifications
Model ZT-HXJ041R ZT-HXJ441-R ZT-HXJ4411-02 ZT-HXJ4411-02R Fixture Customization
Solder Power 200W 200/400w 600W 200/400W 200/400/600W Need
Heating Temperature Range 0-550ºC
Machine Axis Number 4axis 4axis 4axis 5axis Max moving speed
X Axis 400mm 400mm 400mm 400mm/2X 600mm/s
Y Axis 300mm 300mm/2Y 300mm/2Y 300mm/2Y 600mm/s
Z Axis 100mm 100mm 100mm 100mm 400mm/s
R Axis 360° 360° 0 360° ±0.05° Error
Temperature Errors ±2°
Tin Wire Diameter φ0.6mm-1.5mm
Teaching File Capacity 256MB, up to 999 files, single file up to 1000 points
Air Pressure 4-5kg/cm²
Weight(Kg) 58Kg 68Kg 75Kg 85Kg Customized
Size(mm) 600*750*850 800*750*850 850*750*850 1000*750*850 To order
Product Images
Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot

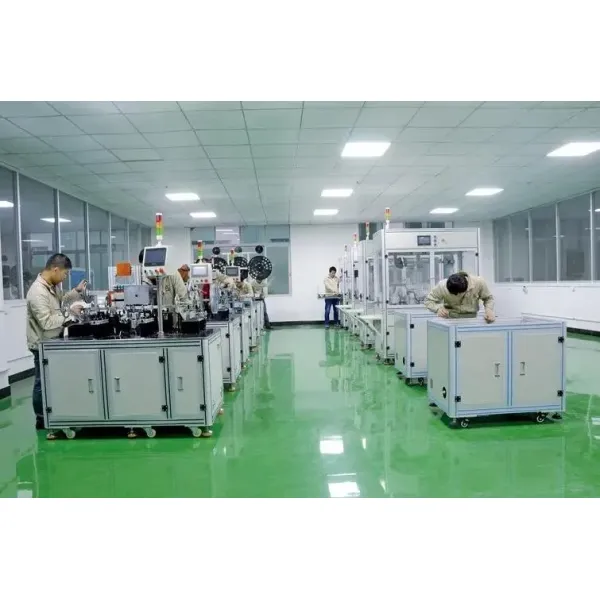

Manufacturer Profile
Shenzhen Zhongtu Automation Technology Co., Ltd. is an automation equipment enterprise integrating R&D, design, manufacturing, debugging and after-sales service.
The company specializes in tooling fixtures, hardware jigs, machining, non-standard mechanical parts processing, production line optimization solutions, automated production line equipment transformation, and non-standard automation equipment design and manufacturing.
Our products are successfully used in electronics, touch screens, LCD/LED, mobile phones, and communication electronics manufacturing fields.
Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot
Our Advantages
  • We are factory manufacturers
  • Reduce overall cost
  • Improve automation level
  • Improve informatization level
  • Improve product yield
  • Provide customers with the most advanced system solutions for automation equipment
Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot
Packing & Shipping
Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot Factory High Efficiency Low Price Double Head Automatic Soldering Machine 4-Axis Tin Soldering Robot
Our Services
Pre-Sale In Sale After Sale
  • Product Introduction
  • Technical Communication
  • Remote consulting service
  • Show the product
  • Explain in detail how to use the product
  • Answer customer questions
  • Support video service
  • Whole equipment guaranteed for 1 year
  • Guide rail/motor/control parts guaranteed for 3 years
Frequently Asked Questions
Who are we? We are based in Guangdong, China, starting from 2015, with 11-50 people in our office.
How can we guarantee quality? Always a pre-production sample before mass production; Always final inspection before shipment.
What can you buy from us? Soldering machine, Precision spot welding machine, Glue dispenser, Screw machine.
Why should you buy from us? With ultra professional service and skill to provide high performance but competitive price goods.
What services can we provide? Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
What is your warranty? We provide 1 Year Warranty for unit machine and 3 years warranty for main board.
May I buy samples? Yes! You are welcome to place sample order to test our superior quality and service.
Are you a trading company or factory? We are professional manufacturer for automation machine since 2015.
